Accessory Switches for Suzuki Jimny (2018+)

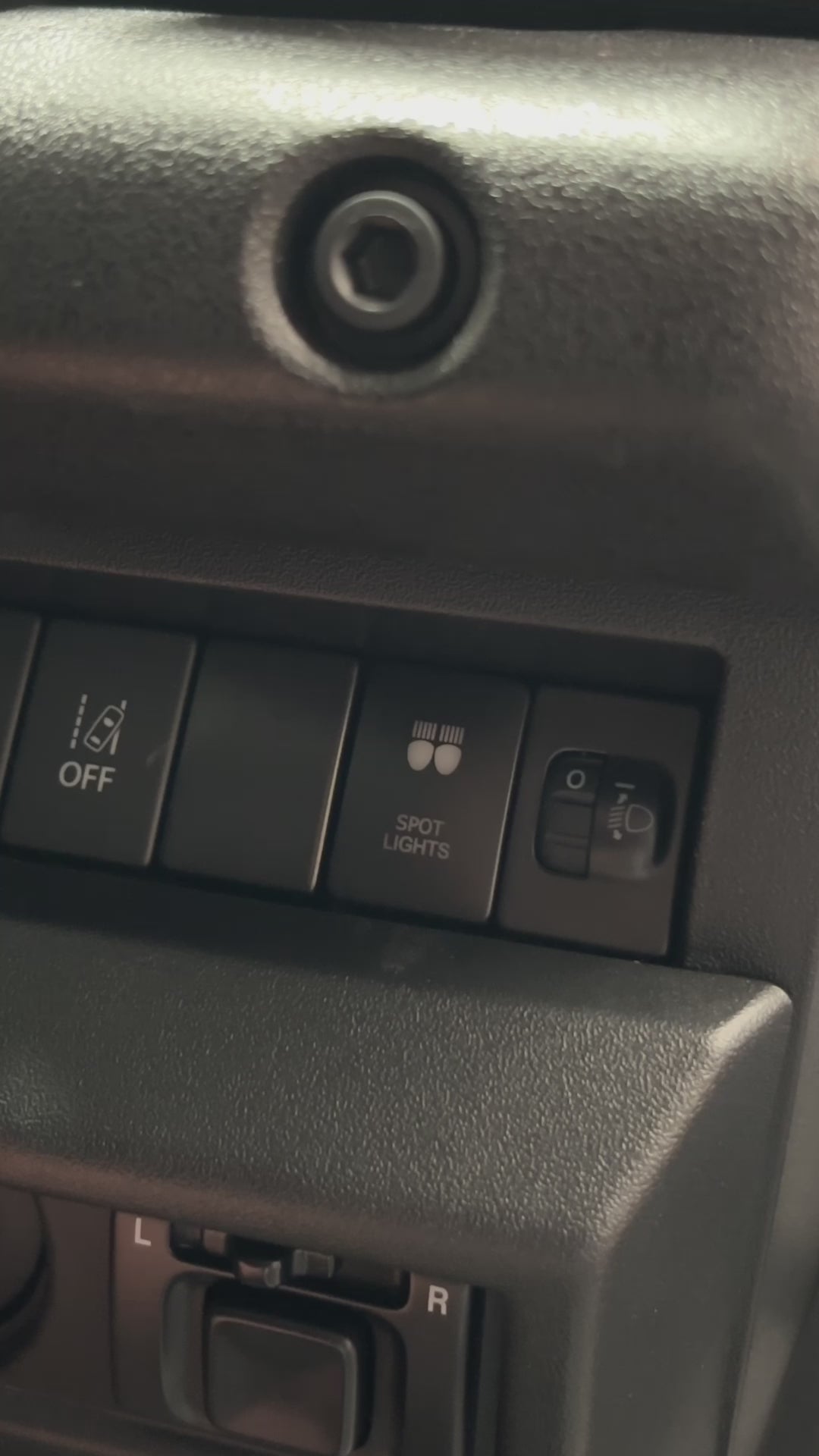

These switches fit perfectly into the switch panel located near to your key ignition barrel and underneath the electric mirror adjustment switch.
Usually, there are a few "blanks" installed in this switch panel. You can remove these blanks and replace them with switches to control your aftermarket accessories.

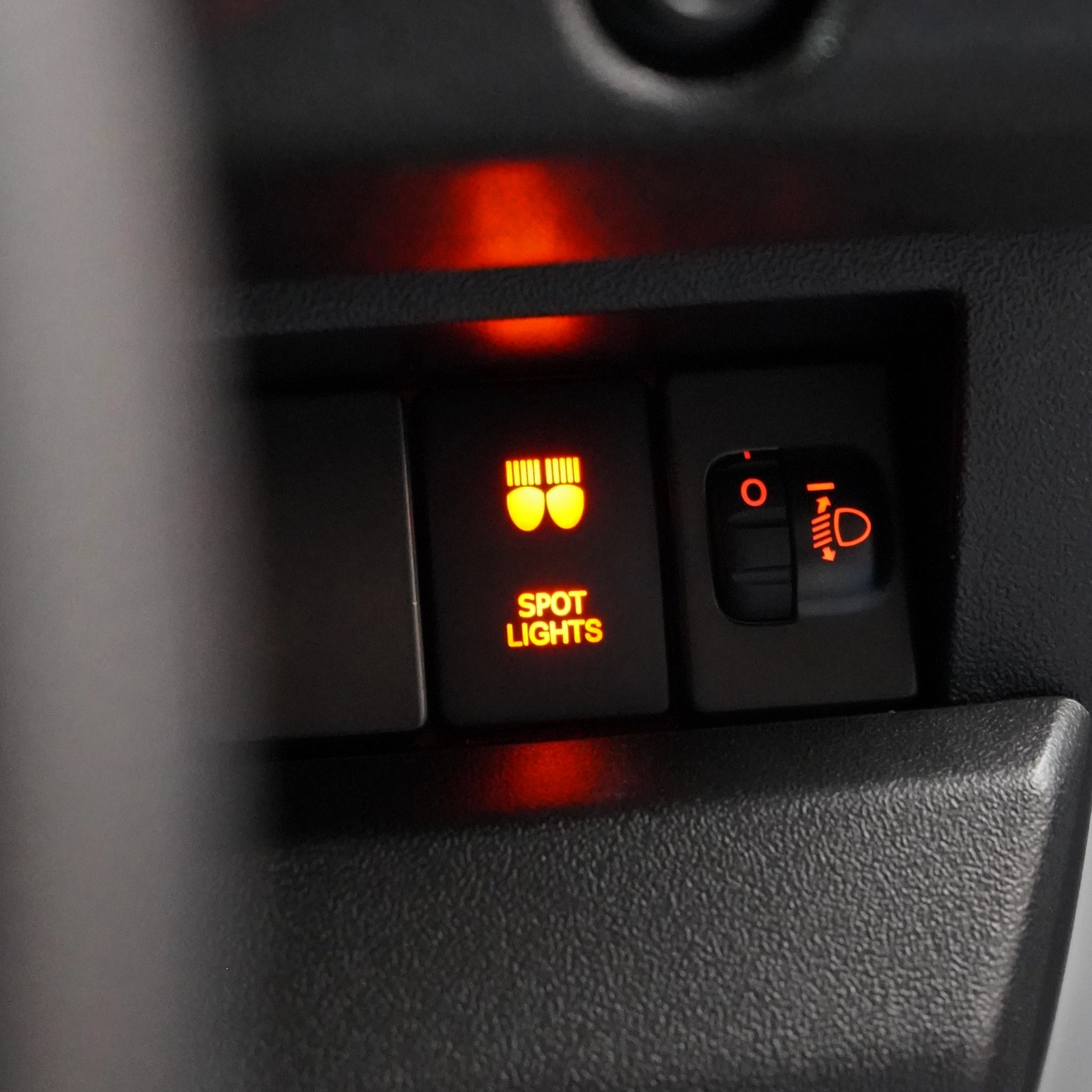

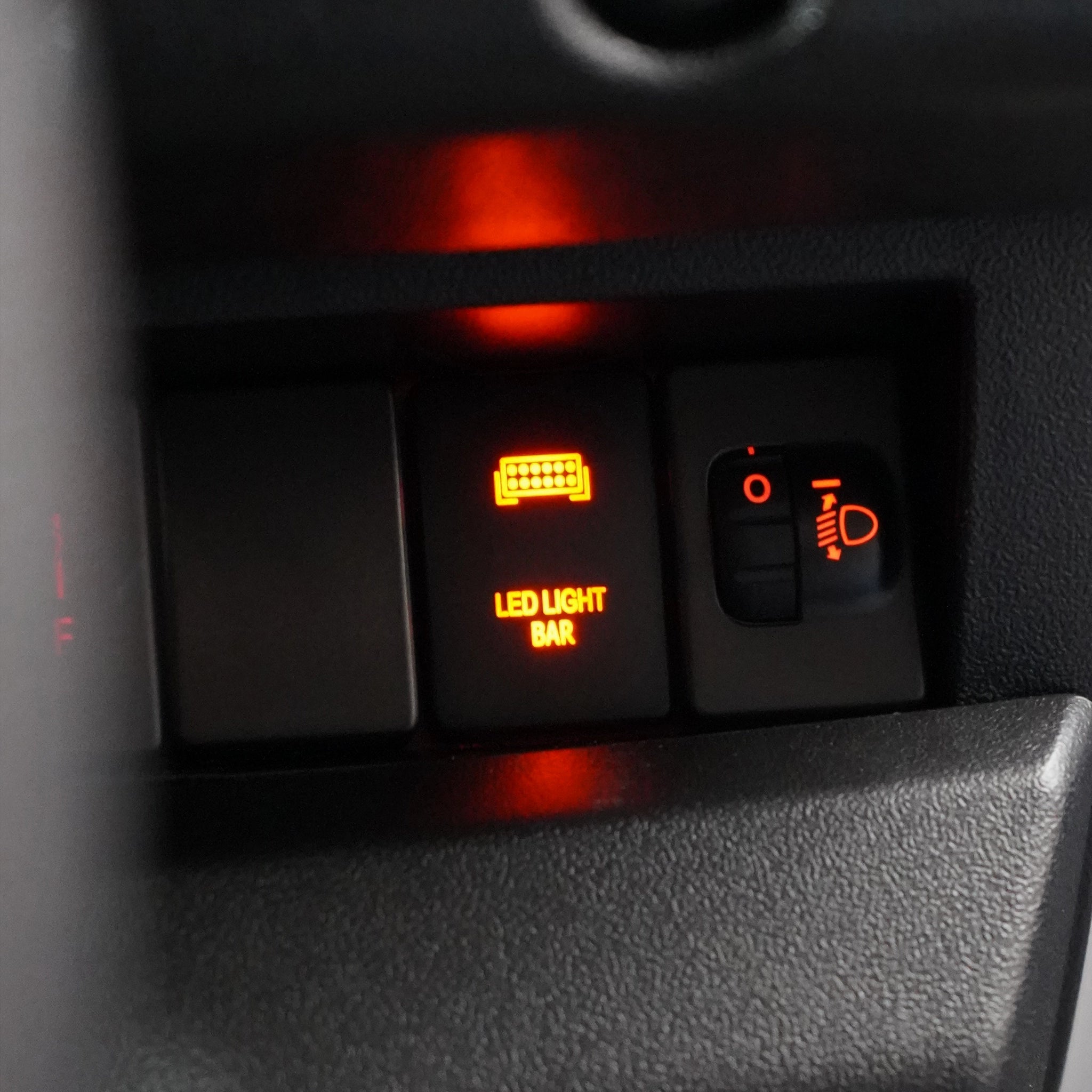

When connected correctly to your Jimny's "illumination" 12V circuit, the description at the bottom of the switch illuminates when the headlights are switched on, highlighting the function of the switch.
When the switch is pushed and activated, both the switch function and graphic illuminate to show that the switch has been turned on.
An electrical connector with wiring is included. Wiring colours are as follows:
Green/Yellow Stripe - permanent 12V live feed
Red/Yellow Stripe - electrical relay switch feed
Yellow/Red Stripe - 12V illumination feed
Black - earth
Please note: switches are supplied individually. Please select which switch graphic type you require when ordering
