JAOS BATTLEZ Complete Lift Kit for Suzuki Jimny JB74

  • €1.610,93
    Unit price per

Only 0 left!
Will not ship until

Custom order item
This product or specification is a custom order item and is not held in stock in our EU warehouse. Once this item is ready, it will be dispatched from our JimnyStyle UK warehouse.

JimnyStyle UK Warehouse:
Very large and/or custom order parts are shipped from this warehouse
Items will be shipped from the UK
Items will not include VAT (sales tax) at the time of ordering
When the items arrive in the EU, you will need to pay EU VAT (sales tax) and import duties/taxes (depending on the value of the order and/or the country that the products are manufactured in)

JAOS are a highly respected off-road tuning specialist in Japan, supplying high quality aftermarket products that range from suspension components to wheels and styling enhancements.

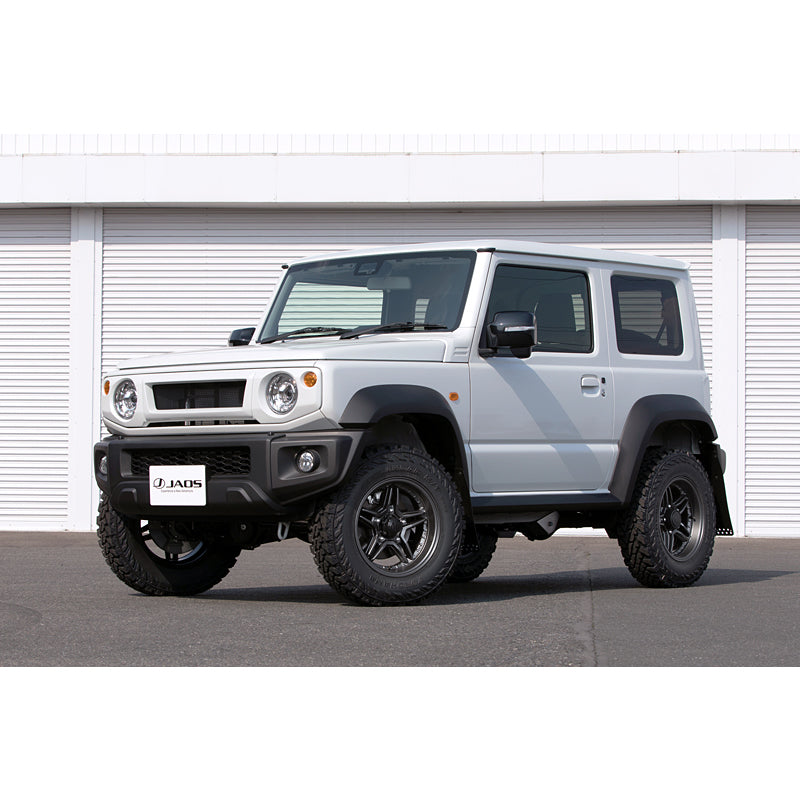

The JAOS BATTLEZ Complete Lift Kit contains all of the necessities to raise the ride height of your JB74 Suzuki Jimny, while still allowing for excellent driving and handling characteristics.

If your car is equipped with LED headlights, please select the optional Headlight Adjustment Bracket when ordering.

Ride Height Increase
Front: 35~40mm
Rear: 35~40mm

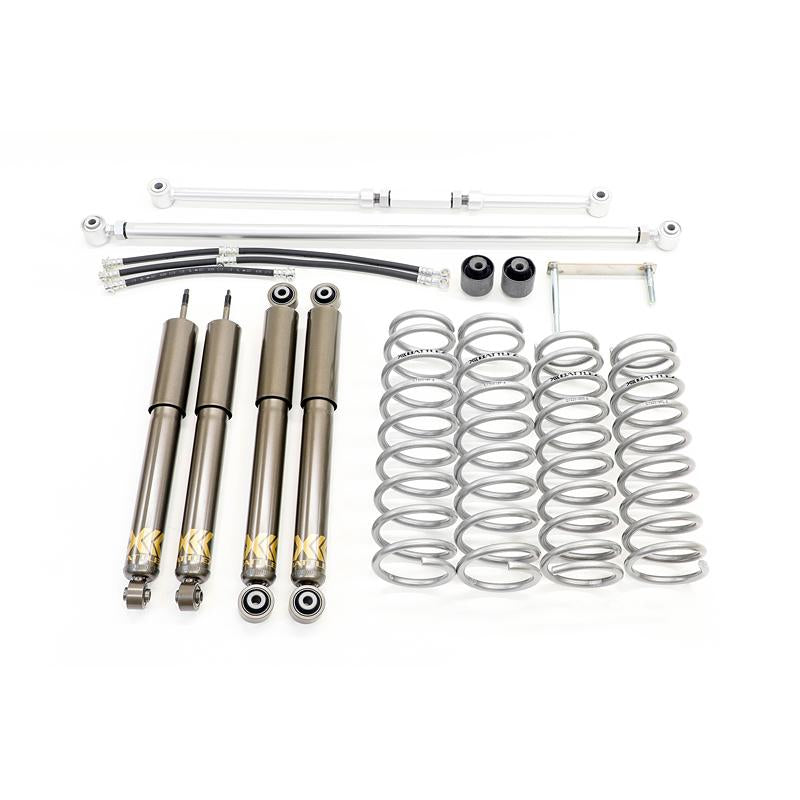

Kit Components
Front & rear coil springs

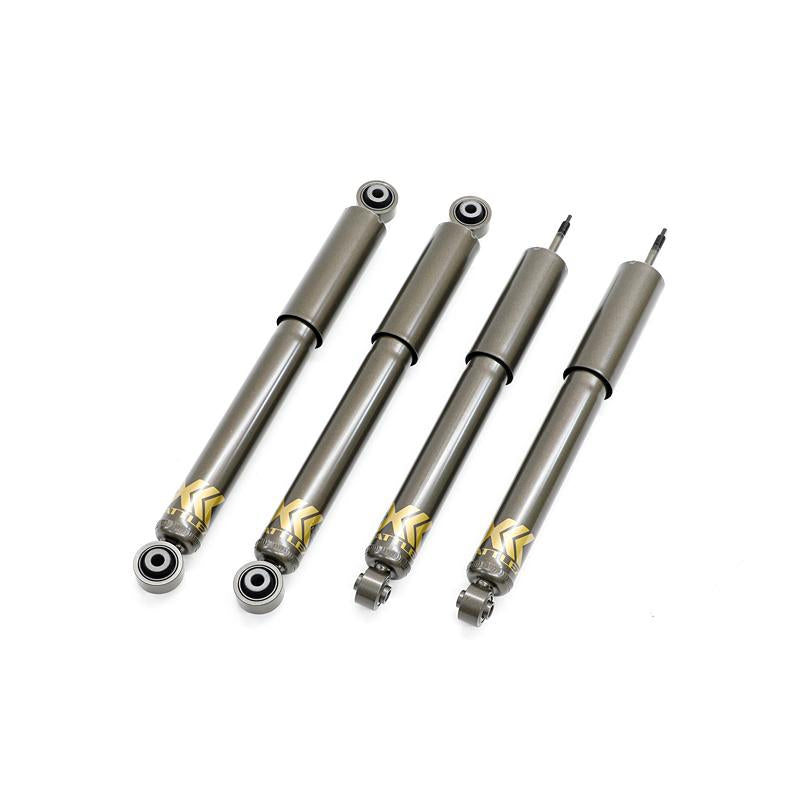

Front & rear shock absorbers
Extended brake hoses

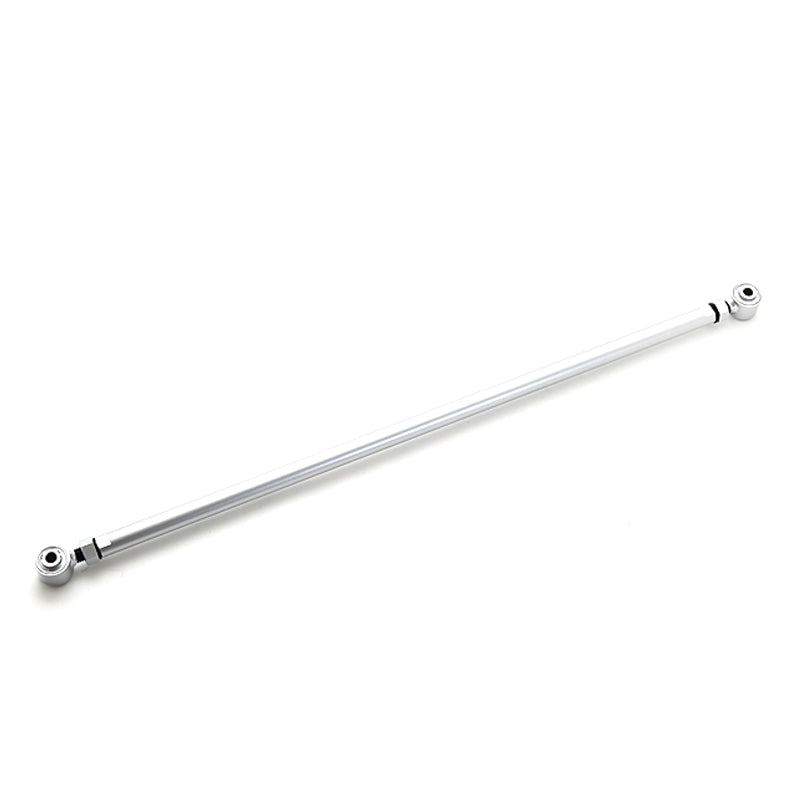

Front lateral rod
Rear lateral rod
Assist kit (caster bush, jig for bush positioning)

Spring Specification
Wire diameter: 11.5mm (front), 11.11mm (rear)
Spring rate: 20.6N/mm (front), 20.5N/mm (rear)

Shock Absorber Specification

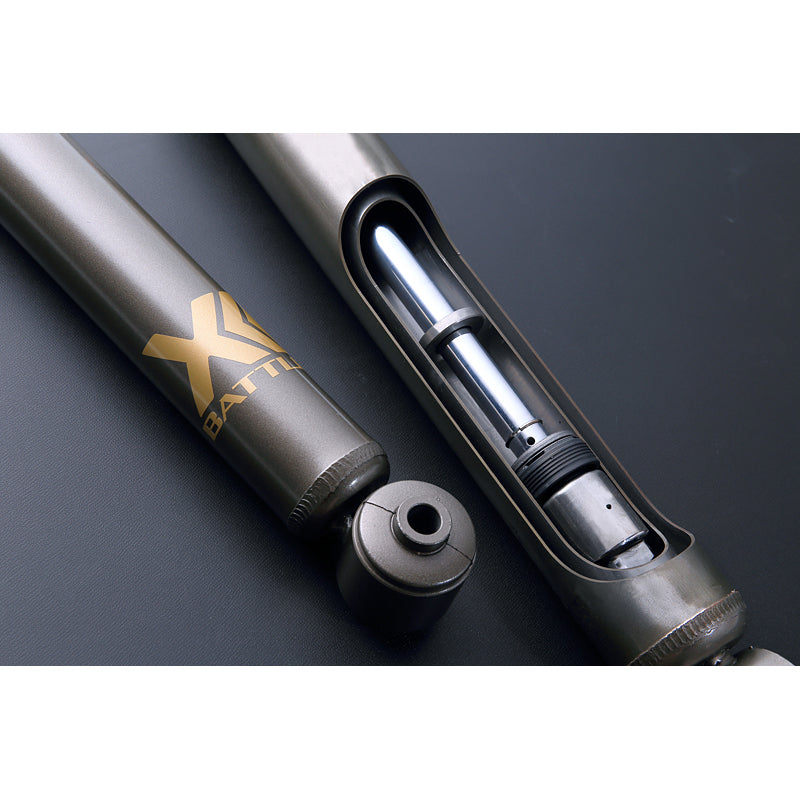

Type: low pressure gas type, twin tube dampers
Damping force: fixed
Stroke: 21mm (front), 31mm (rear)
Diameter: 45mm (front & rear)
Piston diameter: 30mm (front & rear)
