JAOS BATTLEZ Basic Lift Kit for Suzuki Jimny JB74

£1,010.00 GBP
DELIVERY INFORMATION

This product ships from:

  • UK WAREHOUSE
  • EU WAREHOUSE

Tax information:

  • EU CUSTOMERS: EU VAT will be charged on this product at the checkout.
  • ALL OTHER CUSTOMERS: this product can only be shipped from our UK warehouse. Import duties and/or import tax might be payable when this shipment arrives.

JAOS are a highly respected off-road tuning specialist in Japan, supplying high quality aftermarket products that range from suspension components to wheels and styling enhancements.

The JAOS BATTLEZ Basic Lift Kit comprises of the bare necessities to raise the ride height of your JB74 Suzuki Jimny.

If your car is equipped with LED headlights, please select the optional Headlight Adjustment Bracket when ordering.

Ride Height Increase
Front: 35~40mm
Rear: 35~40mm

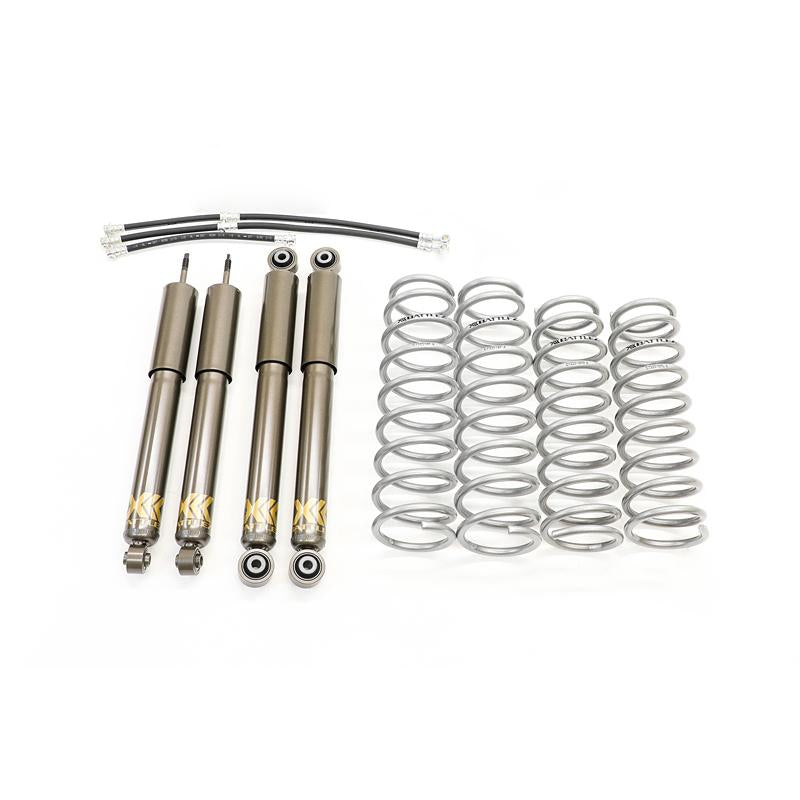

Kit Components
Front & rear coil springs

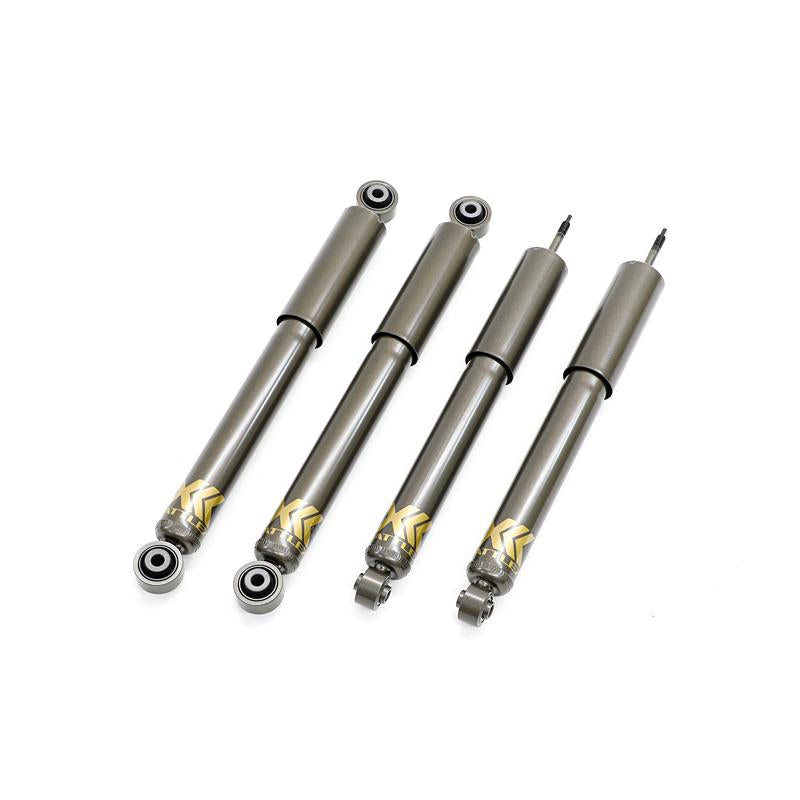

Front & rear shock absorbers
Extended brake hoses

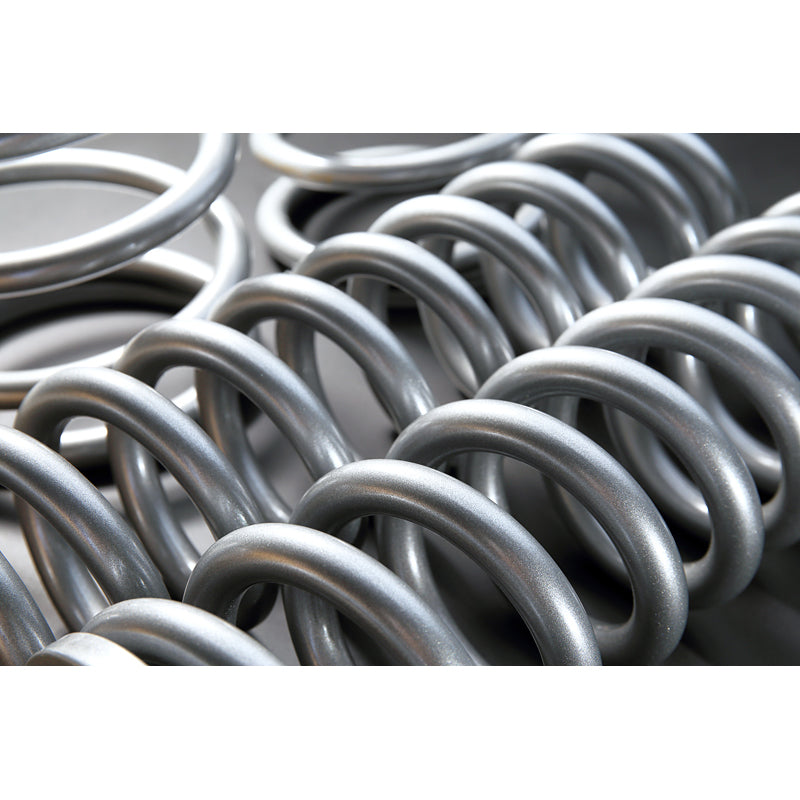

Spring Specification
Wire diameter: 11.5mm (front), 11.11mm (rear)
Spring rate: 20.6N/mm (front), 20.5N/mm (rear)

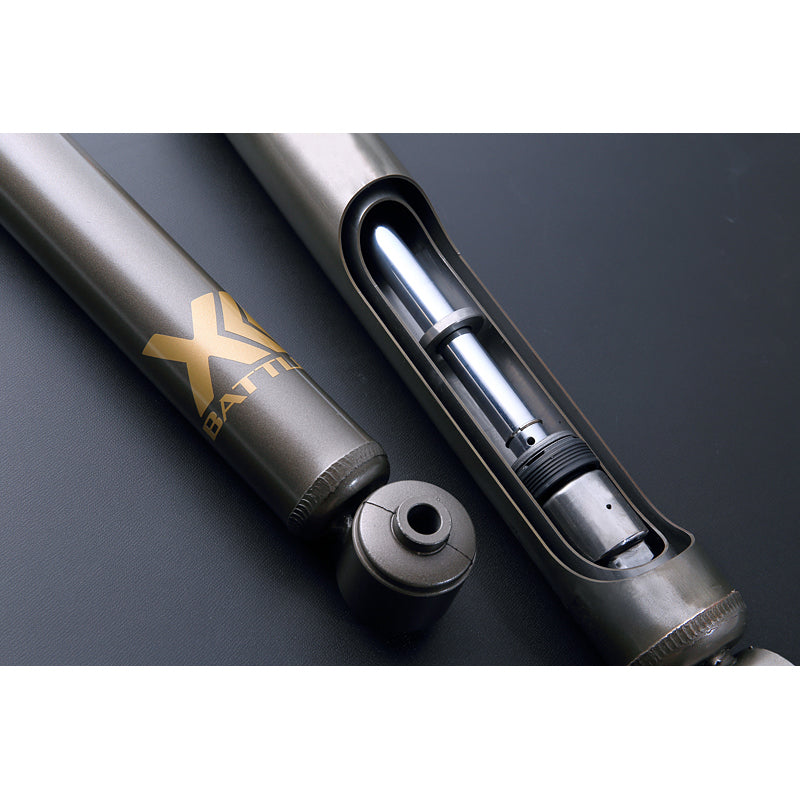

Shock Absorber Specification
Type: low pressure gas type, twin tube dampers
Damping force: fixed
Stroke: +21mm (front), +31mm (rear)
Diameter: 45mm (front & rear)
Piston diameter: 30mm (front & rear)
